🚗 NVIDIA Unveils Alpamayo-R1: A Reasoning VLA for Safer Autonomous Driving #
NVIDIA Research has introduced Alpamayo-R1 (AR1), a new Reasoning Vision-Language-Action (VLA) model designed to address a key bottleneck in autonomous driving: the inability of current end-to-end systems to reason about cause and effect in complex, long-tail scenarios.
Instead of merely reacting to sensor input, AR1 allows autonomous vehicles to infer why an action should be taken — similar to human drivers.
🧩 I. The Bottleneck: Autonomous Cars Can “See” but Cannot “Understand” #
Modern autonomous driving systems integrate cameras, radar, LiDAR, and Transformer-based perception stacks.
Yet even with rich sensory input, today’s end-to-end models struggle with “long-tail” hazards such as:
- Vehicles making illegal or unexpected maneuvers
- Pedestrians suddenly entering the roadway
- Obscured signs, temporary cones, or construction zones
These rare but risky scenarios represent the core blind spot of conventional systems:
They perceive the scene but cannot reason about why a particular maneuver is necessary.
🔗 II. Alpamayo-R1: Adding a Chain of Causation to Driving #
Alpamayo-R1 (AR1) is NVIDIA’s solution — a VLA model built for explicit reasoning.
It enhances driving decisions with a structured Chain of Causation (CoC) framework and multi-stage training.
🧠 1. Chain of Causation (CoC) Dataset #
AR1 introduces causal annotations for each driving sample, describing both the action and the reason behind it.
Example:

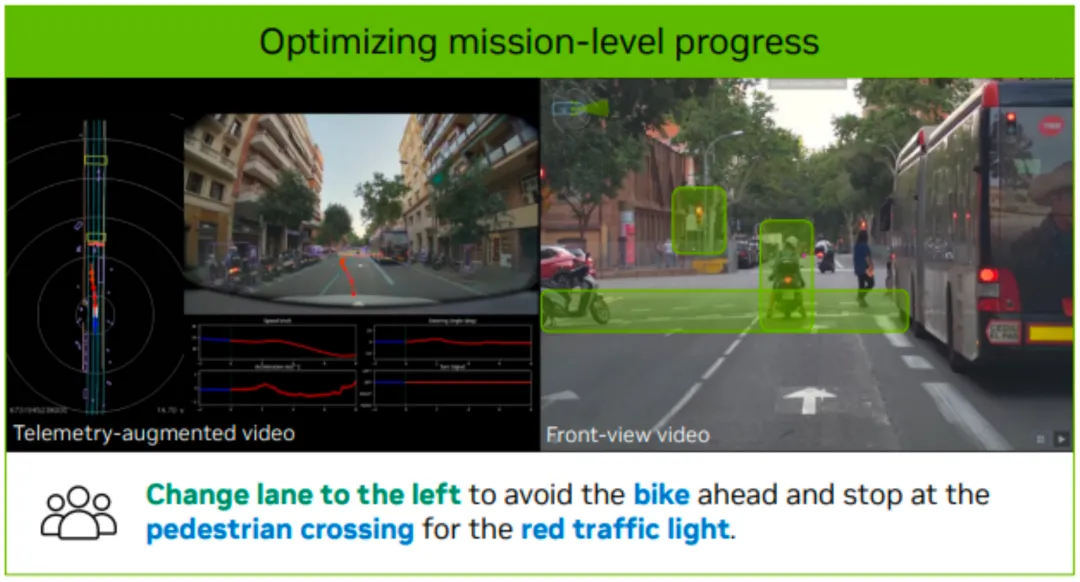

“Slowed and merged left because a moped was waiting at a red light ahead and the left lane was clear.”
🌀 2. Diffusion-Based Trajectory Decoder #
AR1 uses a diffusion model to generate physically feasible trajectories, bridging:
- Reasoning output
- Vehicle dynamics
- Real-time control constraints
This allows the model to “reason in language” but act in continuous space.
🏗️ 3. Multi-Stage Training Pipeline #
Built on Cosmos Reason, NVIDIA’s reasoning VLA backbone for Physical AI, AR1 is trained in three progressive stages:
- Modal injection to learn visual-action mappings
- CoC-supervised fine-tuning to learn causal reasoning
- Reinforcement Learning to optimize reasoning–action consistency and trajectory safety
This staged curriculum enables AR1 to explicitly “think before it drives.”
📈 III. Performance Gains: More Accurate, More Stable, More Human-Like #
AR1 demonstrates significant improvements in long-tail safety and reasoning metrics:
- 🚀 +12% planning accuracy
- 🌲 35% reduction in off-road rate
- 🚗 25% reduction in near-collision events
- 🤖 +37% reasoning-action consistency
- ⚡ 99 ms end-to-end latency
The gains appear precisely in the most failure-prone edge cases — the ones that matter most.

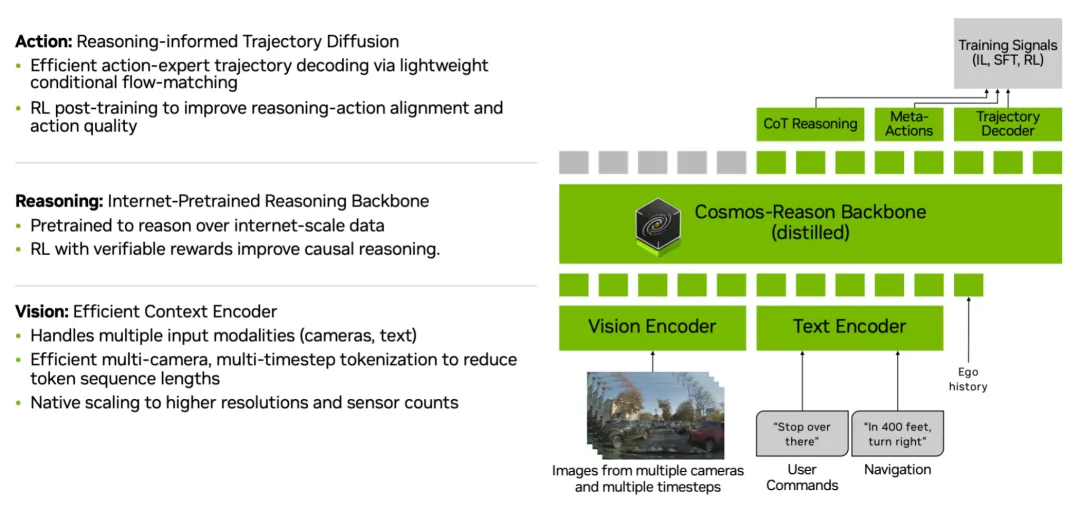

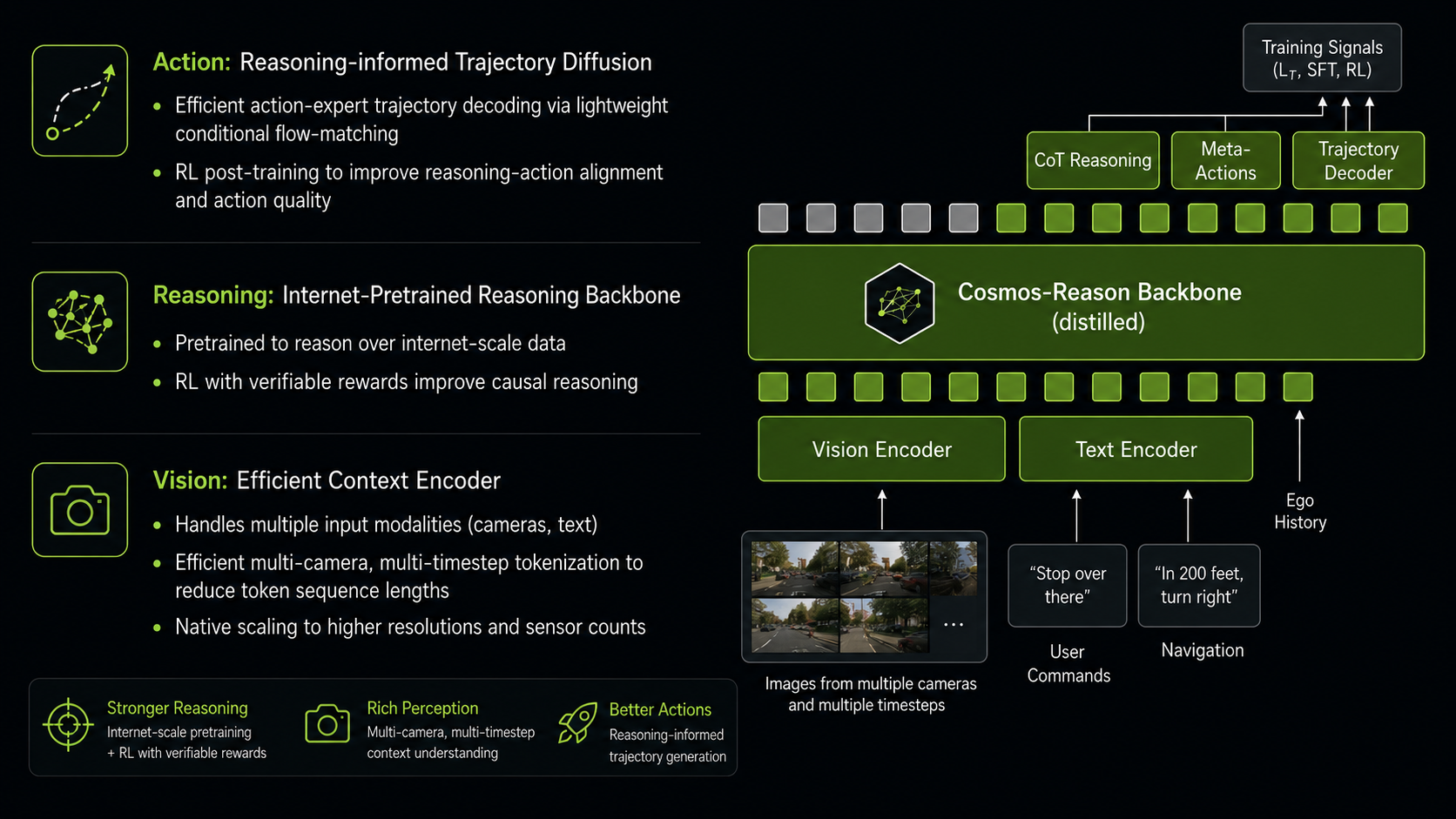

👁️ IV. Vision Encoding: Multi-Camera Temporal Understanding #
AR1 processes multi-camera, multi-frame sequences along with optional language instructions (e.g., navigation goals).
All inputs are unified into a multimodal token representation before entering the Cosmos-Reason Transformer.
Pipeline:
- Per-camera feature extraction with lightweight CNN + temporal attention
- Multi-camera fusion into BEV (Bird’s-Eye View)
- Tokenization of images, motion state, and language inputs
- Transformer-based reasoning and trajectory generation
The model outputs:
- Reasoning traces
- Meta-actions
- Future trajectories
This provides holistic perception, semantics, and motion understanding.
🧠 V. Structured Data: The Heart of AR1’s Reasoning Breakthrough #

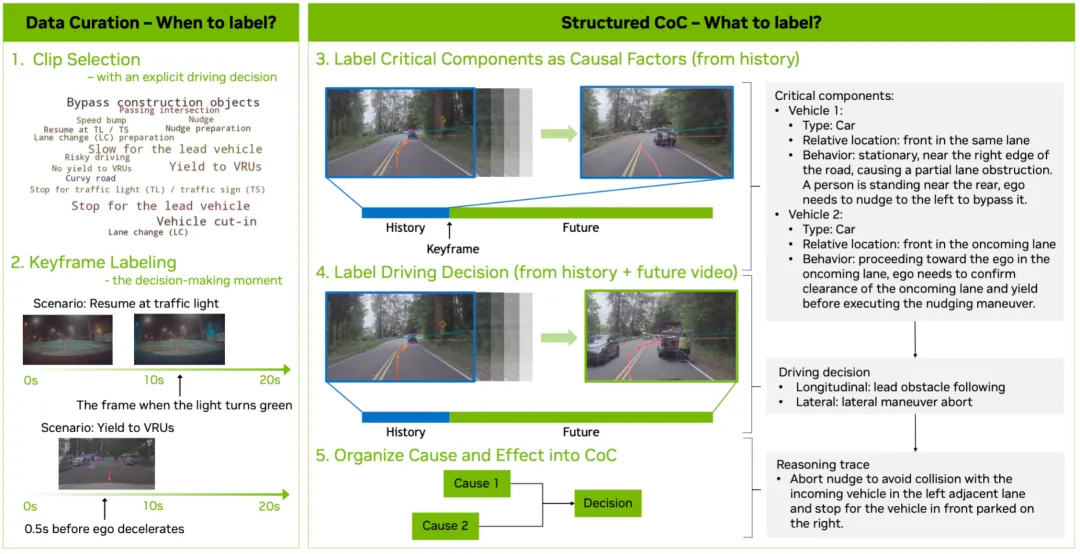

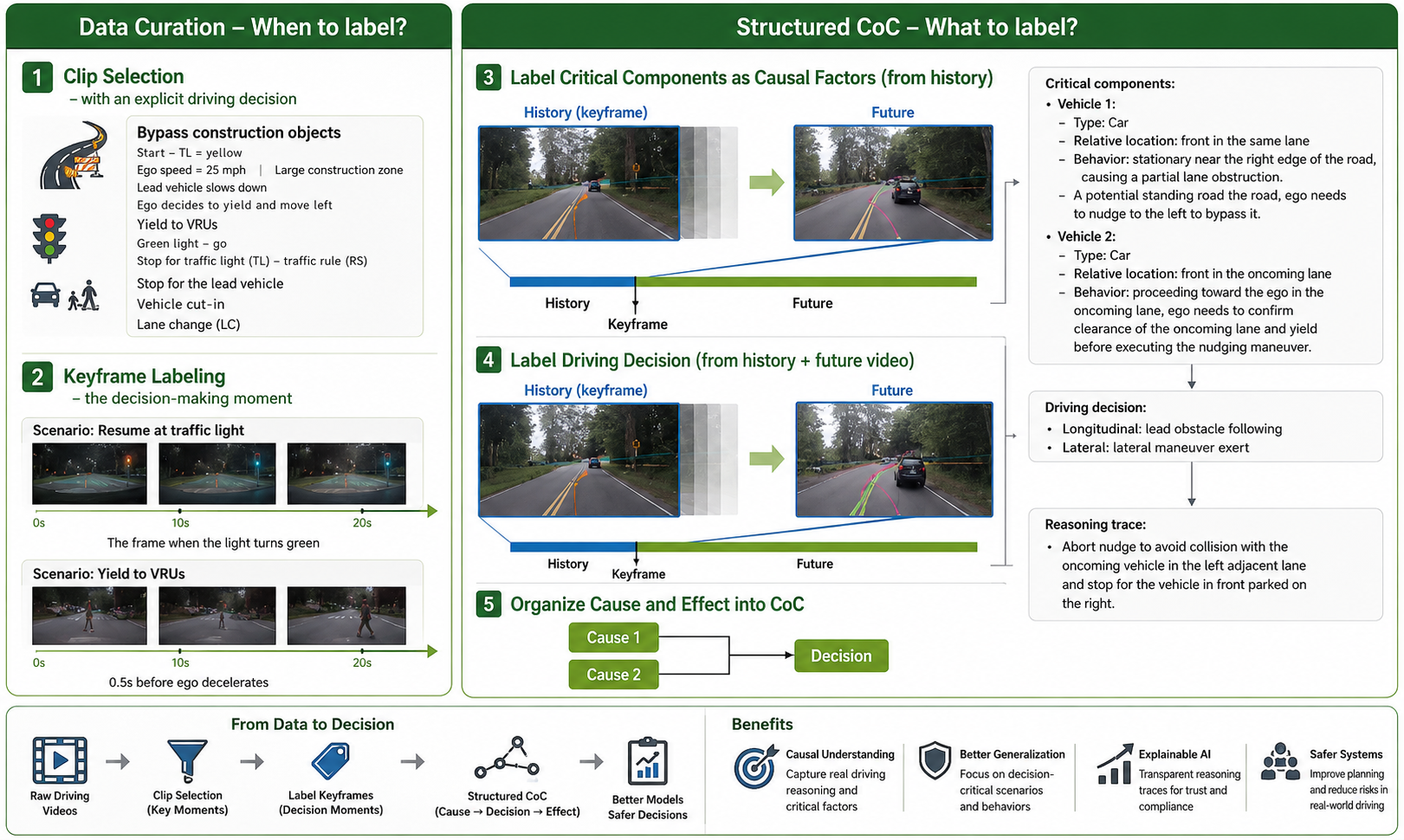

AR1’s CoC dataset uses human-machine collaborative annotation:
- Humans: annotate causal factors, objects, and behavior rationale
- Models: generate preliminary reasoning with LLMs like GPT-5
- Auditors: verify annotations using strict rules for causal correctness and proximity
This results in a high-quality dataset of structured reasoning sequences — the key to teaching the model causal intelligence.

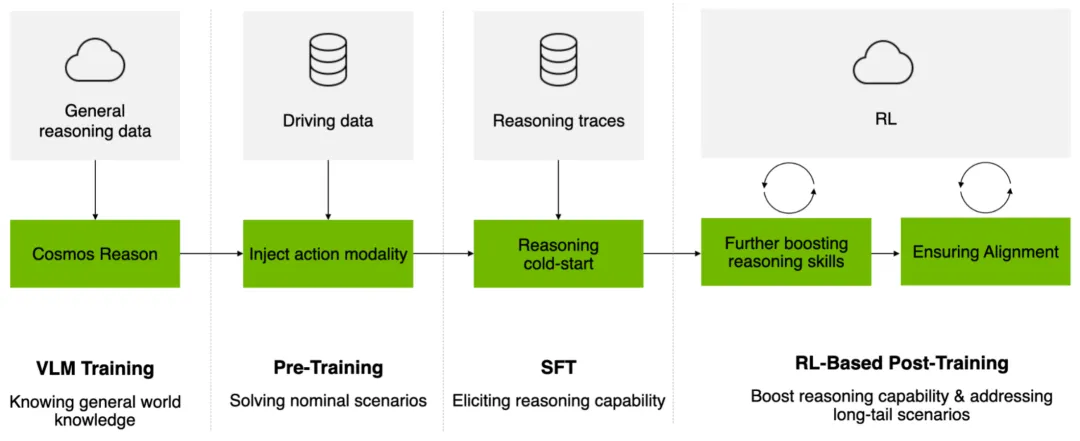

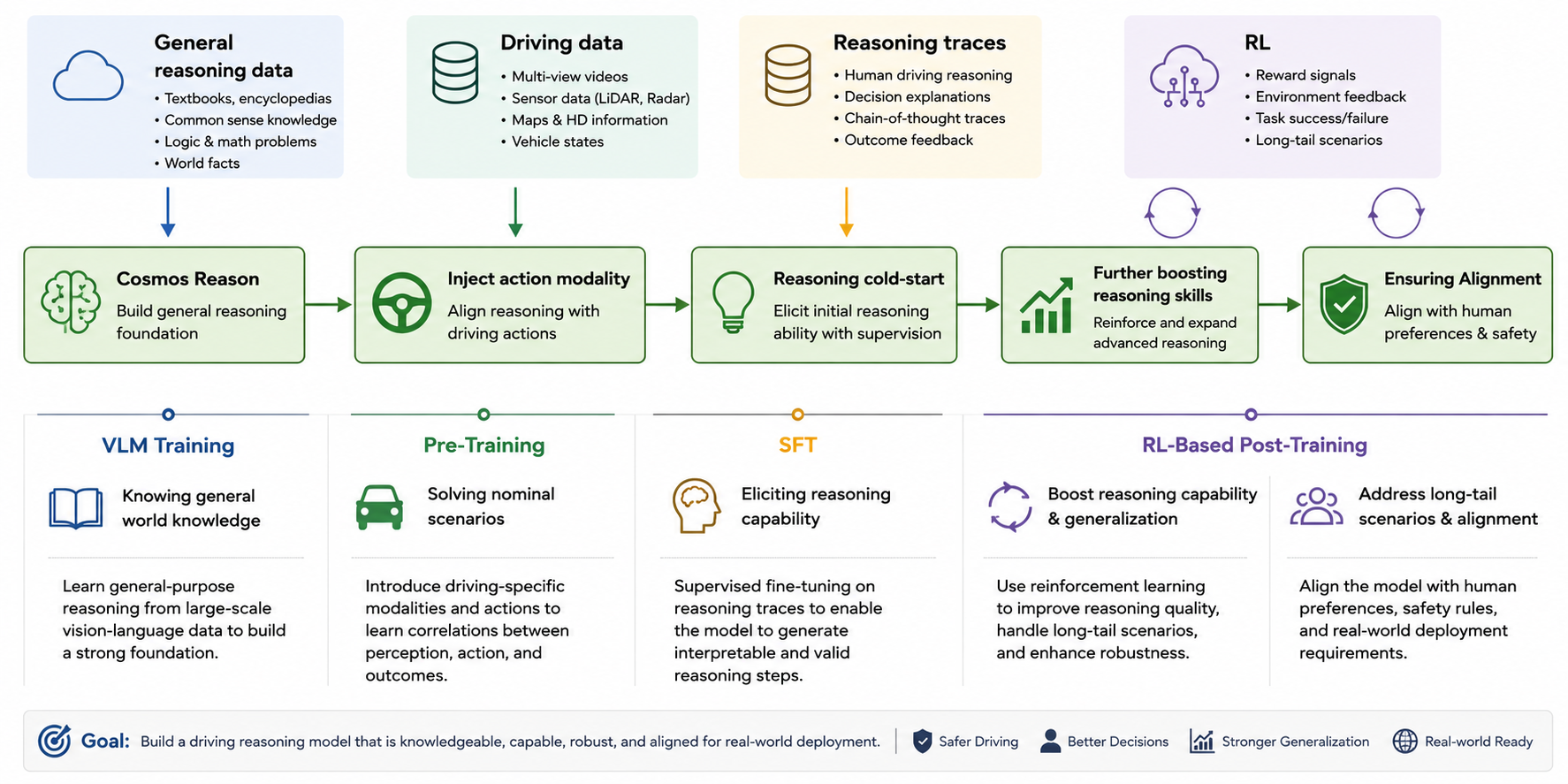

🏋️ VI. Multi-Stage Training: From Seeing → Thinking → Driving #
🧪 1. Supervised Fine-Tuning (SFT) #
Starting from Cosmos-Reason (pre-trained on millions of VQA samples), AR1 learns:
- Physical common sense
- Traffic semantics
- Causal patterns in driving scenes
Extra domain-specific datasets further strengthen its driving intuition.
🔗 2. Chain-of-Causation Supervision #
CoC annotations explicitly teach AR1 to answer:
- “Why did the vehicle slow down?”
- “Why did it turn left at this moment?”
This stage builds its textual reasoning skills before policy optimization.
🎯 3. Reinforcement Learning Optimization #
RL improves:
- Reasoning accuracy
- Reasoning-action consistency
- Trajectory safety
- Closed-loop stability
Reward signals include:
- Expert reasoning feedback
- Causality alignment scores
- Smoothness and safety metrics
Together, these shape AR1 into a reliable, explainable driving agent.
🔮 VII. Toward Explainable L4 Autonomy #
AR1’s design represents a shift from opaque “black-box” self-driving to transparent, explainable autonomy.
It is no longer just an AI that can drive —
It is a system that can tell you why it drives the way it does.
This marks an important step toward trustworthy, human-aligned Level 4 autonomy.
