NVIDIA Locks In Exclusive Access to TSMC A16 Node

🧠 NVIDIA Secures Exclusive A16 Capacity from TSMC

#

TSMC has reportedly granted NVIDIA the first and exclusive order for its upcoming A16 process, effectively defining the physical direction of NVIDIA’s next-generation Feynman GPU.

A16 represents TSMC’s next major step in GAAFET/Nanosheet technology while making Backside Power Rail (SPR) the default power delivery structure.
This shift introduces deeper requirements for metal stack design, IR-drop control, and thermal pathways — challenges that only customers with massive wafer demand and willingness to take on early-node risk can meet.

At present, only one company fits that profile — NVIDIA.

⚡ A16 vs. N3P: Small PPA Gains, Huge AI Accelerator Impact

#

The Rubin architecture (currently using N3P) is already in mass production, but A16 promises:

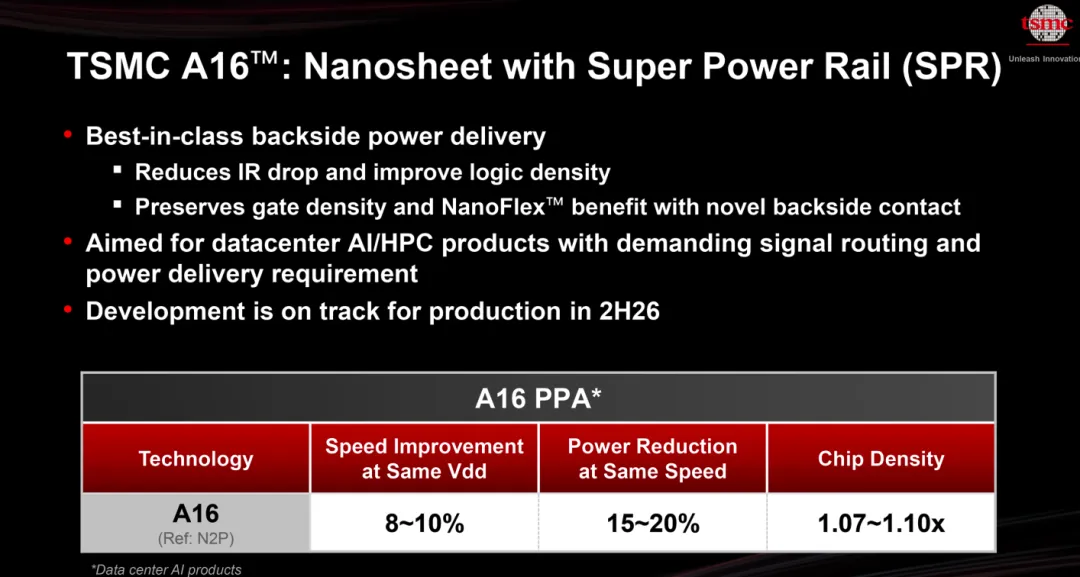

• 8–10% speed gain
• 15–20% power reduction
• 7–10% transistor density increase

While these PPA improvements may appear incremental, the implications for large GPU dies are enormous:

• Higher stable frequencies
• More aggressive voltage–frequency curves
• Larger SRAM blocks
• Expanded on-die switching networks
• Shorter interconnect paths

These directly enhance the bandwidth efficiency of multi-GPU systems using NVLink/NVSwitch, the backbone of NVIDIA’s scaling strategy for AI training.

🏭 NVIDIA Drives 3nm Expansion Ahead of Rubin Ramp

#

To meet Rubin demand, NVIDIA is reportedly urging TSMC to accelerate the 3nm P3 fab expansion.
Production capacity is projected to reach 160,000 wafers/month by year-end — achievable only when one or two customers drive the majority of volume.

TSMC insiders explicitly identify NVIDIA as the key force behind this growth.

Because 3nm yields are still maturing, and large GPU dies are yield-sensitive, NVIDIA must:

• Pre-book EUV machine time
• Spread yield-ramp risk across Rubin, Rubin Ultra, and future products
• Lock in multi-year capacity to stabilize node economics

This ensures NVIDIA maintains uninterrupted access to the most advanced HPC process nodes.

🧩 A16 Mass Production Aligns with NVIDIA’s Roadmap

#

A16 is expected to enter volume production in H2 2026, with Kaohsiung P3 ramping further in 2027.
This timeline aligns precisely with NVIDIA’s plans:

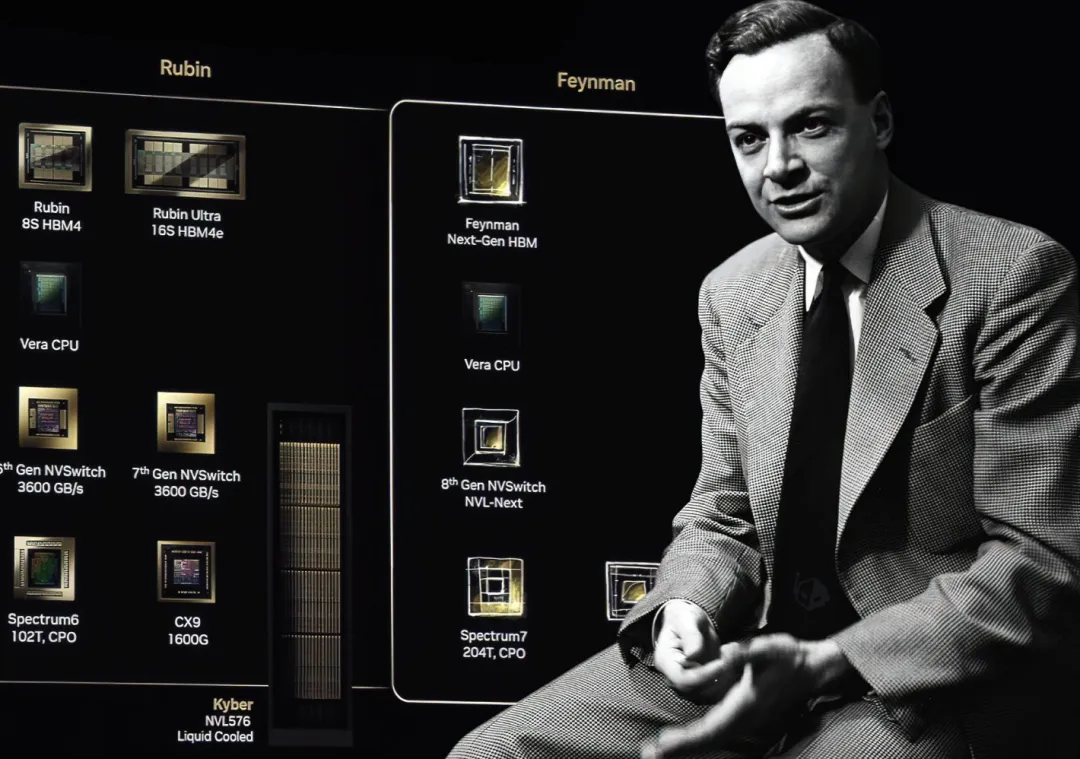

• 2026: Vera Rubin superchip enters production
• 2027: Feynman transitions into pipeline

Supply-chain reports further claim Apple will skip A16 in favor of A14, leaving NVIDIA as the sole customer.

This also grants NVIDIA unusual influence over customizing the node’s manufacturing configuration, something TSMC rarely offers except for highly specialized HPC-focused nodes.

🔌 SPR: The Key to Higher GPU Frequencies

#

A16’s adoption of Backside Power Rail (SPR) directly tackles voltage drop in large-matrix AI engines.

Traditional front-side power delivery requires power metals to pass through logic layers, creating:

• Long current paths
• Severe IR-drop
• Frequency ceilings in high-current workloads

SPR relocates these power layers to the wafer’s backside, enabling:

• Shorter, more efficient current flow
• Lower voltage droop
• Higher peak frequencies
• More stable operation under FP8/FP4 dense math workloads

This is critical because modern AI accelerators are far more frequency-sensitive than they appear.

🌡️ Thermal Benefits: Higher Density Deployments

#

With SPR, Feynman can:

• Clock higher at the same power
• Maintain frequency while lowering voltage
• Reduce rack-level thermal output

Data centers often hit thermal limits before they hit power or floor space limits.
Reducing thermal density enables:

• Higher GPU-per-rack configurations
• Better cooling efficiency
• Improved utilization and total training throughput

This is where A16 shines — not just as a smaller node, but as a thermal efficiency enabler.

🧬 NVIDIA’s Strategy: Control the Node, Control the Market

#

NVIDIA’s early lock-in of A16 is not merely cosmetic “node leadership.”
It’s a deliberate move to maintain the dual advantage of:

1. Process node leadership, and
2. Large-die scaling (something competitors struggle to match due to yield and cost).

Rivals are taking different paths:

• AMD leans on chiplet packaging and HBM stacking
• Google and Microsoft pursue in-house AI ASICs
• None can compete for top-tier EUV time at the scale NVIDIA demands

A16’s single-customer model underscores NVIDIA’s power in the supply chain.

🚀 Outlook: Can A16 Deliver on Yield and Frequency Curves?

#

The real test will be:

• A16 yield during the early ramp
• Frequency gains unlocked by SPR
• Cost-per-die as Rubin and Feynman volumes scale

If NVIDIA maintains its current purchasing levels, it will continue to dominate TSMC’s HPC pipeline, leaving competitors to pursue second-tier nodes or packaging-heavy alternatives.

NVIDIA has already taken its seat at the front of the A16 line — and the window for others to follow is closing fast.
