AMD Instinct MI300: The Unified CPU-GPU Architecture for AI
AMD’s Instinct MI300 represents one of the company’s most ambitious attempts to challenge NVIDIA in the rapidly expanding AI accelerator market.
Rather than treating the CPU, GPU, and high-bandwidth memory as separate components, the MI300 family brings them together in a tightly integrated package. The architecture combines advanced chiplet technology, 3D packaging, and HBM to target workloads that require enormous compute throughput and rapid data movement.
The flagship design contains approximately 146 billion transistors, putting it among the most complex accelerators of its generation.
More importantly, MI300 reflects a strategic idea AMD has pursued for years: tightly integrating heterogeneous compute resources into a single system.
The difference is that AI has finally created a workload where this approach makes much more sense than it did in the consumer PC market.
🚀 Why AI Changed the GPU Market #
GPUs were originally associated primarily with graphics and gaming.
The emergence of deep learning fundamentally changed their role.
Neural networks require enormous numbers of parallel mathematical operations, making GPUs extremely effective for training and inference. As AI models became larger, the requirements expanded beyond raw compute performance.
Modern AI accelerators increasingly need:
- Massive parallel compute
- Extremely high memory bandwidth
- Large memory capacity
- Efficient CPU-GPU communication
- High-speed interconnects
- Sophisticated software ecosystems
This has transformed GPUs into critical infrastructure for high-performance computing (HPC) and data-center AI.
NVIDIA capitalized on this shift earlier than its competitors, turning its GPU business into the foundation of a massive AI computing ecosystem.
AMD’s MI300 is designed to compete directly in this market.
Traditional computing
CPU ─────────► System Memory
│
└───────────► GPU ─────────► VRAM
Unified AI architecture
┌───────────────┐
│ CPU │
├───────────────┤
│ GPU │
├───────────────┤
│ HBM │
└───────────────┘
│
Tightly integrated
compute + memory
The closer these components are coupled, the less time and energy the system needs to move data between them.
🧠 MI300 Brings CPU, GPU, and HBM Together #
The MI300 family is built around an integrated architecture combining heterogeneous compute engines and high-bandwidth memory.
The most CPU-centric implementation, MI300A, combines Zen-based CPU cores with CDNA-based GPU compute and HBM in the same package. MI300X, meanwhile, focuses more heavily on GPU acceleration for AI and HPC.
The overall concept can be represented as:
MI300
│
┌───────────┴───────────┐
│ │
CPU GPU
Zen cores CDNA cores
│ │
└───────────┬───────────┘
│
HBM
│
High-bandwidth memory
This architecture reduces the physical and logical distance between processors and memory.
For AI workloads, that matters because moving model parameters and intermediate tensors can consume enormous amounts of bandwidth and energy.
Instead of thinking about the CPU and GPU as isolated processors, MI300 treats them as components of a unified computing system.
⚡ 146 Billion Transistors and Advanced Packaging #
The MI300 family demonstrates how semiconductor packaging has become as important as transistor scaling.
With approximately 146 billion transistors, MI300 relies on multiple compute and memory components integrated through advanced packaging rather than placing everything onto one conventional monolithic die.
This allows AMD to combine different chip technologies within a single package.
MI300 Package
┌────────────────────────────┐
│ GPU Compute Dies │
│ │
│ CPU Compute Dies │
│ │
│ I/O / Interconnect │
├────────────────────────────┤
│ HBM │
│ HBM Stacks │
└────────────────────────────┘
This type of packaging is becoming increasingly important as monolithic dies approach practical limits in size, yield, and manufacturing cost.
It also provides a path toward combining CPU and GPU resources without forcing every component to use exactly the same manufacturing process.
🧮 CPU Still Matters in AI Servers #
Although GPUs perform most of the computationally intensive AI operations, CPUs remain essential to the overall system.
They handle tasks such as:
- Job scheduling
- Data preprocessing
- Operating-system functions
- I/O management
- Application orchestration
- CPU-oriented workloads
- Coordination between accelerators
This is one reason AMD’s position is strategically interesting.
AMD has extensive experience designing both x86 CPUs and high-performance GPUs, allowing it to build a heterogeneous system around both technologies.
The company’s transformation accelerated after Lisa Su became CEO in 2014.
Under her leadership, AMD returned its focus to high-performance CPU architecture, eventually producing the Zen family and regaining significant market share against Intel.
📈 AMD’s CPU Comeback Created a Second Opportunity #
The Zen architecture fundamentally changed AMD’s competitive position.
AMD moved from being a distant competitor in server CPUs to becoming a major supplier of high-performance x86 processors.
The transition was driven by several factors:
AMD turnaround
│
▼
Zen architecture
│
▼
TSMC advanced process technology
│
▼
Higher CPU performance
│
▼
EPYC server expansion
│
▼
Stronger data-center position

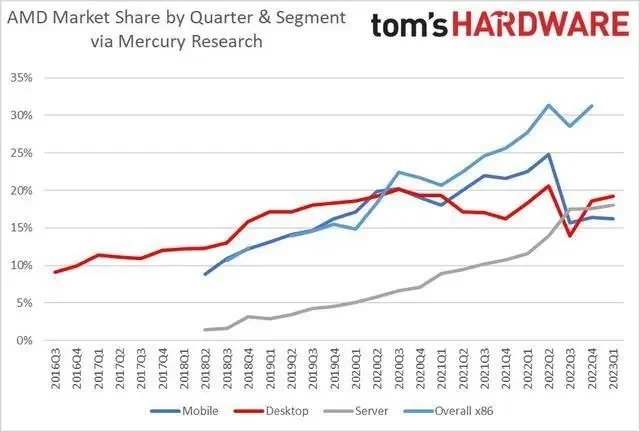

By 2023, AMD had reached record levels of x86 CPU market share and had become a major force in the server market.
Its CPUs also powered a growing number of the world’s fastest supercomputers.
But AI presented a different challenge.
While AMD was strengthening its CPU position, NVIDIA was building an even stronger lead in accelerated computing.
🏆 NVIDIA’s Real Advantage Is CUDA #
MI300’s hardware is only one part of the competition.
The larger challenge is NVIDIA’s software ecosystem.
NVIDIA introduced CUDA in 2006, transforming its GPUs from graphics processors into programmable accelerators for scientific and technical computing.
Over the following years, CUDA developed into a large ecosystem encompassing:
- Developer tools
- Libraries
- Compilers
- AI frameworks
- Numerical computing
- HPC applications
- Optimization tools
- Cloud platforms
This creates a powerful network effect.
More CUDA developers
│
▼
More CUDA software
│
▼
More optimized applications
│
▼
More customers choose NVIDIA
│
▼
More developers target CUDA
│
└───────────────► Flywheel
This is why competing with NVIDIA cannot be reduced to matching GPU specifications.
Even if two accelerators offer comparable theoretical compute performance, the platform with better software support can remain substantially easier to deploy.
🛠️ AMD ROCm Is the Counterweight #
AMD’s answer to CUDA is ROCm, its open software platform for GPU computing and AI workloads.
ROCm provides the infrastructure required to run compute applications on AMD accelerators and supports major AI frameworks.
However, AMD entered the GPU-compute ecosystem later and faced a significant software maturity gap.
During the early stages of the AI boom, NVIDIA already had years of accumulated CUDA software, developer experience, optimized libraries, and production deployments.
This created a difficult problem for AMD:
AMD hardware improvement
│
▼
More competitive accelerators
│
▼
Need more software support
│
▼
Need more developers
│
▼
Need more applications
│
▼
Need more customers
Breaking this cycle requires more than building a faster GPU.
AMD needs developers to view ROCm as a practical alternative rather than simply another accelerator backend.
🛡️ NVIDIA Also Moved Into CPUs #
NVIDIA recognized that CPU-GPU integration would become increasingly important.
In 2020, NVIDIA announced plans to acquire Arm for approximately $40 billion. Although the transaction ultimately failed to close, NVIDIA continued investing heavily in CPU development.
The company built a dedicated CPU organization and introduced the Grace data-center CPU.
Grace was designed specifically to work alongside NVIDIA GPUs, emphasizing high memory bandwidth and tight communication between CPU and accelerator resources.

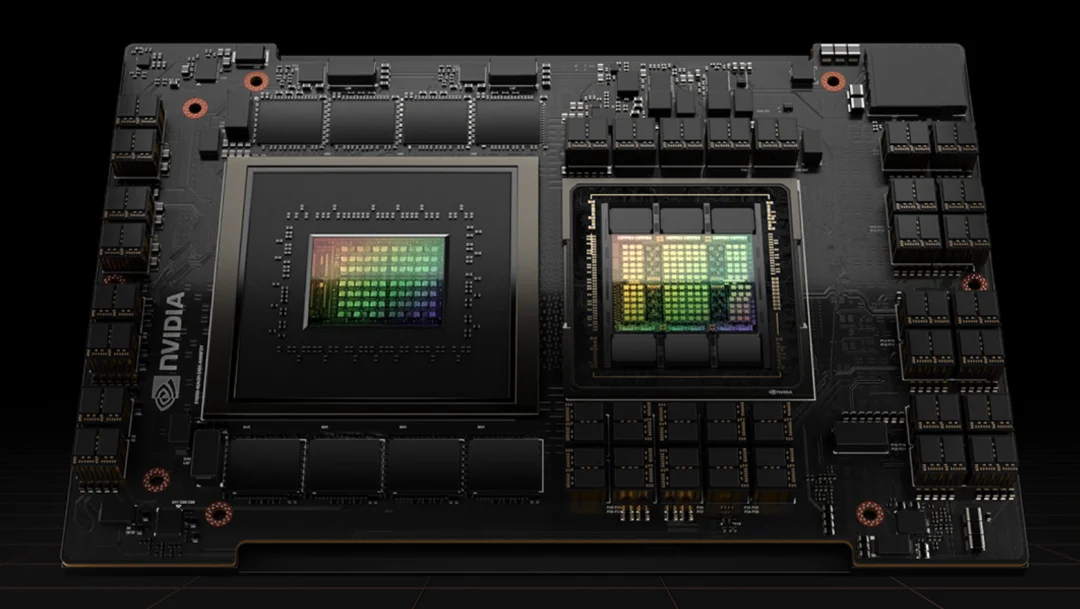

The evolution eventually produced systems such as Grace Hopper, which combine Grace CPUs with Hopper GPUs.
NVIDIA strategy
Grace CPU
│
├──────────────┐
│ │
▼ ▼
Shared / coherent High-speed
memory interconnect
│ │
└──────┬───────┘
▼
Hopper GPU
This puts NVIDIA directly into the same architectural territory that AMD has pursued through heterogeneous computing.
🔗 The APU Vision Returns in the AI Era #
There is an interesting historical connection between MI300 and AMD’s older APU strategy.
AMD began promoting the Accelerated Processing Unit concept more than a decade ago, combining CPU and GPU functionality into a single processor.
At the time, however, the technology and market conditions were not mature enough to fully realize the idea.
Several factors limited the approach:
- Packaging technology was less advanced
- Consumer workloads were highly fragmented
- CPU-GPU configurations were difficult to scale
- Customization costs were high
- Software was not sufficiently optimized for heterogeneous computing
APUs eventually found major success in tightly controlled platforms such as game consoles, where the hardware and software could be optimized together.
AI changes the equation.
Modern AI workloads naturally benefit from tightly integrated compute and memory resources.
AI requirements
│
├── Massive compute
│
├── High memory bandwidth
│
├── Large memory capacity
│
└── Low CPU-GPU communication overhead
│
▼
Heterogeneous architecture
│
▼
MI300
Advanced packaging, chiplets, 3D integration, and HBM have also matured enough to make the concept practical at data-center scale.
💾 HBM Is the Key to Modern AI Acceleration #
Compute performance alone cannot keep modern AI accelerators busy.
Large models constantly move data between compute units and memory, making memory bandwidth a critical performance factor.
HBM addresses this by placing multiple high-bandwidth memory stacks close to the compute dies.
The basic relationship is:
Traditional memory
CPU/GPU ───────────────► DRAM
Long path
Lower bandwidth
HBM-based accelerator
Compute ───► HBM
│││
│││
▼▼▼
Wide memory interface
Very high bandwidth
For AI workloads, the resulting bandwidth can significantly improve utilization of the compute engines.
MI300 therefore combines two trends that have become central to modern accelerators:
heterogeneous computing + high-bandwidth memory.
🌐 MI300 and the Future of Data-Center AI #
AMD’s broader AI portfolio is designed to address different levels of the computing stack.
At one end are CPUs and integrated AI processors.
At the other end are high-end Instinct accelerators designed for large-scale data centers.
MI300 sits near the center of this strategy by combining CPU and GPU technologies with advanced memory and packaging.
The competitive landscape can be simplified as:
AI Compute
│
┌─────────────┴─────────────┐
│ │
NVIDIA AMD
│ │
Grace + Hopper EPYC + Instinct
│ │
CUDA ecosystem ROCm
│ │
└─────────────┬─────────────┘
│
AI + HPC workloads
The hardware competition is increasingly becoming a platform competition.
Compute architecture, memory technology, packaging, interconnects, software, developer tools, and cloud availability all influence the final product.
🏁 MI300 Is More Than a Faster GPU #
The significance of MI300 is not simply its transistor count or HBM capacity.
Its importance lies in AMD’s attempt to combine several architectural ideas into one platform:
- CPU and GPU integration
- Chiplet-based design
- Advanced 3D packaging
- High-bandwidth HBM
- Heterogeneous computing
- AI acceleration
- HPC support
- ROCm software
This approach builds on ideas AMD developed long before the current AI boom.
The difference is that AI has finally created a market where these ideas can operate at enormous scale.
AMD's earlier vision
│
▼
CPU + GPU integration
│
▼
Advanced packaging
│
▼
HBM + chiplets
│
▼
AI workloads
│
▼
MI300
🔮 The Real Battle Is Hardware Plus Ecosystem #
MI300 gives AMD a credible architectural foundation for competing in AI and HPC, but the company’s biggest challenge remains the software ecosystem.
NVIDIA’s advantage was built over many years through CUDA, optimized libraries, developer adoption, and deep integration across data centers and cloud platforms.
AMD’s opportunity is different.
The company already has a strong CPU business, a growing accelerator portfolio, and an increasingly important ROCm ecosystem. If AMD can combine those assets with competitive AI hardware and reliable software support, MI300 and its successors could become an important alternative to NVIDIA’s dominant platform.
The AI accelerator race therefore cannot be measured by TFLOPS, transistor counts, or HBM capacity alone.
The long-term winners will be the companies capable of combining:
Hardware
+
Memory
+
Packaging
+
Interconnect
+
Software
+
Developers
+
Customers
│
▼
Complete AI platform
AMD’s Instinct MI300 is a major step in that direction.
The technology revives AMD’s long-standing CPU-GPU integration philosophy at precisely the moment when AI workloads are making tightly coupled compute and memory architectures more valuable than ever. The harder question is whether AMD can turn that hardware advantage into the kind of software and developer ecosystem that has made NVIDIA so difficult to displace.
